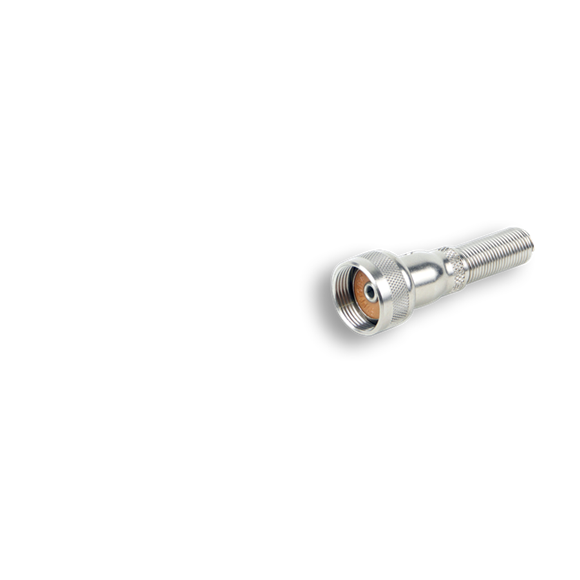

Vintage Microphone Connector

Vintage Microphone Connector

product1
Connectors with 5/8-27 threads are designed for use with single conductor microphone cable with .281 inch (7.14 mm) maximum outside diameter. 44 adapts 2501F to fit standard 2-conductor phone jack. Coupling ring on 2501F is removable for fast change from female to male type. Spring assembled into body, cable braid and spring clamped by hollow set screws .281 inch (7.14 mm) maximum cable diameter. 2501MP mounts in .390 inch (9.92 mm) diameter hole.




Materials

  • Shell: Brass, plated
  • Rivet: Brass, plated

Configuration

  • Number of Conductors: 1
  • Termination Style: Solder Cup
  • Contact Plating: Silver
  • Color: Matte Nickel
  • Locking: Locking
  • Packaging Type: Bulk

Mechanical

  • Coupling Locking Style: Threaded

Environmental

  • Shielding: Shielded

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

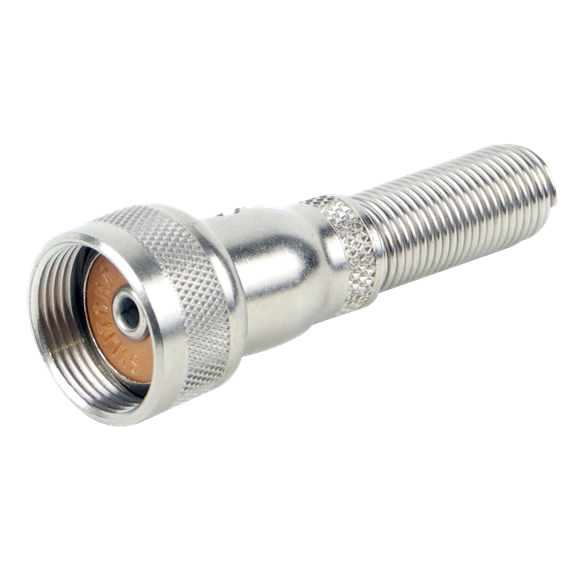

2501f
Enlarge
2501f
  • There are no alternate images available for this product.

  •
