156

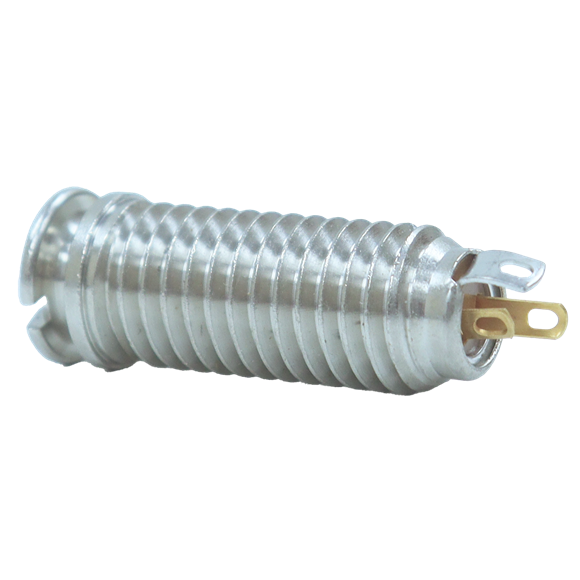

1/4" Stereo 3 Conductor Thick Panel Mount Jack without cable clamp, 9/16-12 Wood Threads, Gold Plated Springs, Nickel plated

Out of stock

This item is special order

Drawings:

Buy Now

View More From This Family

Details
Specifications
Videos
Documents

Jacks are standard 1/4" phone jacks with extra long threaded bushing for mounting in panels/chassis up to 1.25" thick. Metal bushing virtually eliminates hum pick-up, and is ideal for electric guitar and speaker connections. Jacks mate with standard commercial 1/4" phone plugs. Jacks mount in a single .469" diameter hole. Rugged cable clamp protects connections from twisting and pulling stresses.

Configuration

Number of Conductors: 2
Product Line: Littel Jacks
Mounting Type: Panel
Termination Style: Solder
Contact Plating: Nickel
Locking: Non-Locking
Sealed: Not Sealed
Packaging Type: Bulk
Standard Connector Type: 1/4" Phone Jacks & Plugs
Jack-Plug Type: Jack
Special Feature: Thick Panel "End Pin" Jack

Electrical

Current Rating: 1 Amps
Circuit-Schematic: Single Open

Mechanical

Panel Thickness: 1.25 in

Environmental

Temperature Range: -55C to +85C
Shielding: Unshielded
Minimum Temperature: -55 C
Maxiumum Temperature: 85 C

Compliance

RoHS Compliant: Compliant
REACH Compliant: Compliant
Brand: Switchcraft

Material

Body Material: Copper Alloy
Body Plating: Nickel
Contact Material: Copper Alloy
Insert Material Type: Rigid Plastic Insulating Spacers
Terminal Material: Copper Alloy
Spring Material: Copper Alloy
Sleeve Material: Steel
