Switchcraft

PJRAS1X3S02X

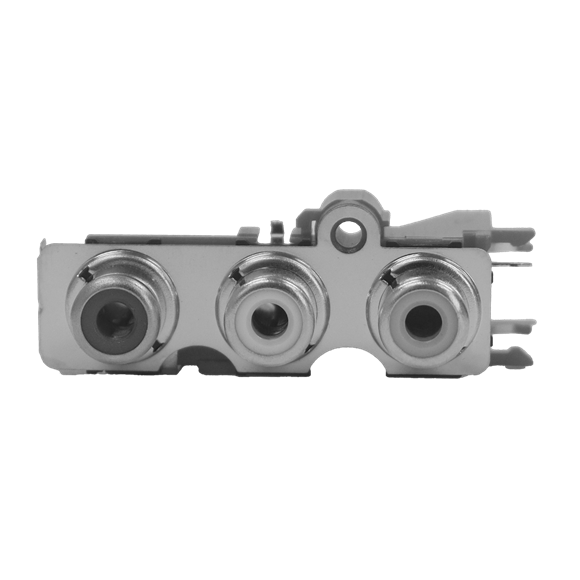

1 horizontal by 3 vertical position RCA PCB mount RCA jack, screw mounting hole, shielded, green/ blue/ red (top to bottom)

Out of stock
This item is special order
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Mounting Type: Panel
  • Mounting Feature: Screw Mounting Hole
  • Termination Style: Right Angle PC Mount
  • Contact Plating: Nickel
  • Color: Green/Blue/Red
  • Sealed: Not Sealed
  • Insert Material: ABS
  • Packaging Type: Bulk
  • Number of Stations: 3
  • Standard Connector Type: RCA
  • Jack-Plug Type: Jack
  • PC Mount Style: Thru-Hole

Electrical

  • Contact Resistance: 0.03 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Voltage Rating: 34 Volts
  • Current Rating: 24 Amps

Mechanical

  • Operating Force: 0.23 lbs

Environmental

  • Temperature Range: -25C to +80C
  • Flame Rating: UL 94V-HB
  • Minimum Temperature: -25 C
  • Maxiumum Temperature: 80 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Copper Alloy
  • Body Plating: Nickel
  • Contact Material: Copper Alloy
  • Contact Plating Type: Nickel
  • Terminal Material: Copper Alloy Tin-Plated
