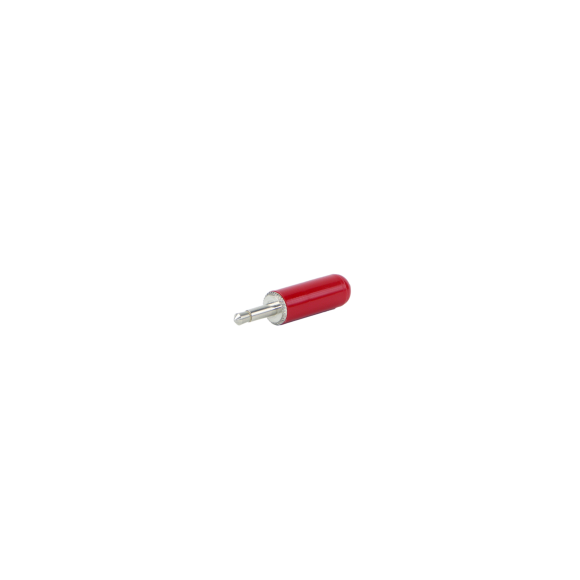

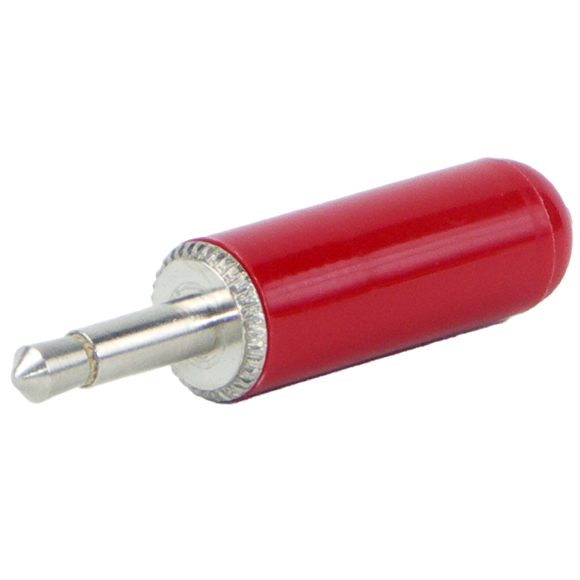

Miniature 2-conductor Phone Plug for use with Switchcraft Tini-Jax miniature phone jacks. About 1/2 the size of Switchcraft Littel-Plug phone plug. Average net weight, 1/8 ounce.
Various terminal combinations: (a) Dual purpose sleeve terminal may be clamped over metal braid or shielded cables; provides cable anchor. Easily soldered for perfect electrical connection. (b) Screw terminal design (no cable clamp) for cable. Terminals that can be more suitably connected by screws.
1-piece tip rod staked into mating terminals; no disassembly of tip during use of plug. Terminals and body of plug interlocked mechanically.
Can be used with cables up to .188" outside diameter
Number of Conductors:
Standard Connector Type:
Copper Alloy Nickel-Plated
