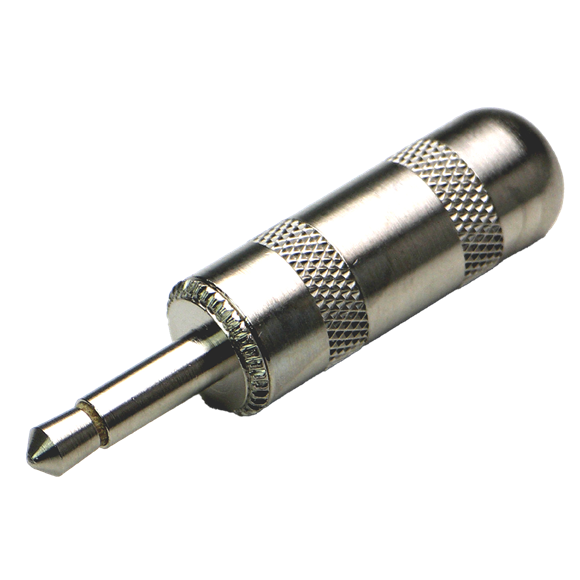

Miniature 2-conductor Phone Plug for use with Switchcraft Tini-Jax miniature phone jacks. About 1/2 the size of Switchcraft Littel-Plug phone plug. Average net weight, 1/8 ounce.
Various terminal combinations: (a) Dual purpose sleeve terminal may be clamped over metal braid or shielded cables; provides cable anchor. Easily soldered for perfect electrical connection. (b) Screw terminal design (no cable clamp) for cable. Terminals that can be more suitably connected by screws.
1-piece tip rod staked into mating terminals; no disassembly of tip during use of plug. Terminals and body of plug interlocked mechanically.
Can be used with cables up to .188" outside diameter
Configuration
-
Number of Conductors:
2
-
Product Line:
Tini-Jax
-
Mounting Type:
Cord
-
Termination Style:
Solder Cup
-
Color:
Nickel
-
Locking:
Non-Locking
-
Sealed:
Not Sealed
-
Handle Material:
Nickel
-
Packaging Type:
Bulk
-
Standard Connector Type:
Tini-Jax
-
Jack-Plug Type:
Plug
Electrical
-
Current Rating:
0.25 Amps
Mechanical
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Switchcraft
Dimensional
Material
-
Body Material:
Copper Alloy
-
Body Plating:
Nickel
-
Terminal Material:
Copper Alloy Nickel-Plated
