Conxall

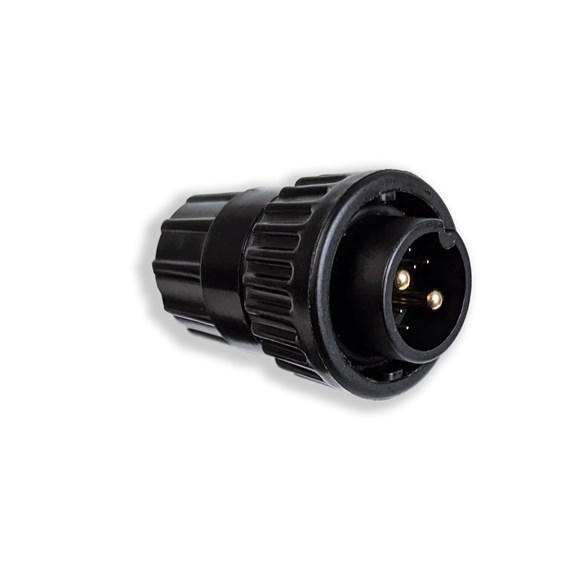

W3B80-8PG-335

2#12/6#26 Mixed Contact Size Multi Con-X, Cable End, Male Pins, Crimp, Short Backshell, 8.9-9.4mm cable OD

Out of stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 8
  • Product Line: Multi-Con-X
  • Mounting Type: Cord
  • Gender: Male
  • Contact Size: 12 AWG
  • Termination Style: Crimp
  • Contact Plating: Gold
  • Color: Black
  • Sealed: Sealed
  • Packaging Type: Bulk
  • Backshell Style: Short
  • Winged Coupling Ring: Not Winged
  • Special Feature: Mixed Contact Size

Mechanical

  • Coupling Locking Style: Bayonet

Environmental

  • Shielding: Unshielded

Certification

  • RoHS Compliant: 1
  • REACH Compliant: 1
  • Brand: Conxall
  • IP Rating: IP67
  • IP65: 1
  • IP66: 1
  • IP67: 1

Dimensional

  • Cable Opening: 0.37 in

Material

  • Contact Plating Type: Gold
  • Insert Material Type: UV Resistant
