Switchcraft

35HDLBAU

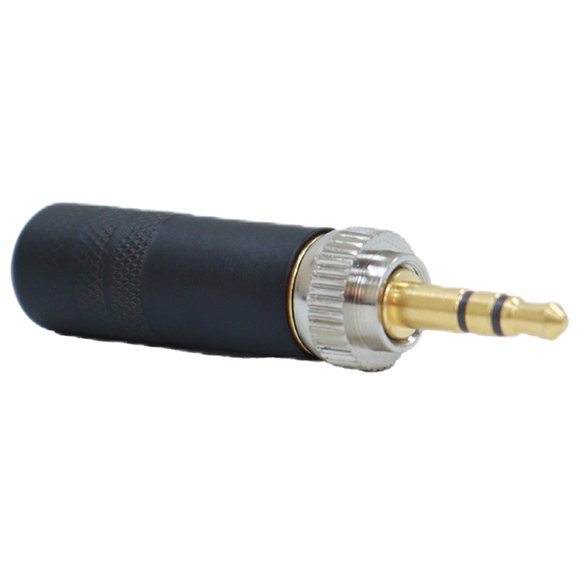

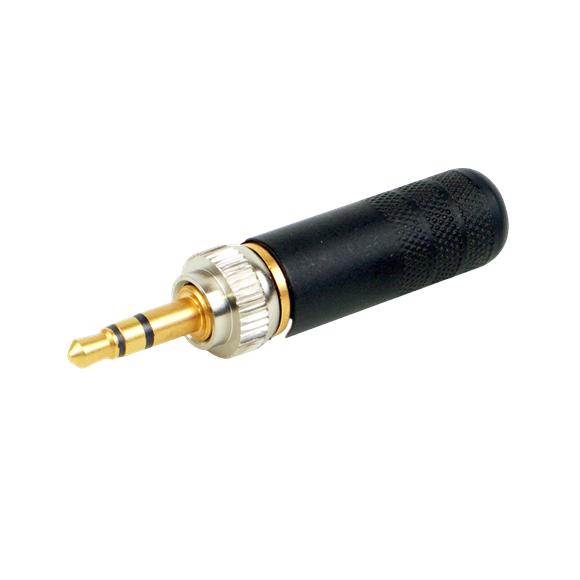

3.5MM (1/8" mini) Locking Stereo Plug, black handle, gold plug, 0.290 cable opening

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 3
  • Product Line: 35HD
  • Mounting Type: Cord
  • Termination Style: Solder
  • Color: Black
  • Locking: Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: 3.5mm Jacks & Plugs
  • Jack-Plug Type: Plug

Electrical

  • Contact Resistance: 0.02 Ohms
  • Dielectric Withstanding Voltage: 250 Volts
  • Insulation Resistance: 2000 MOhms
  • Voltage Rating: 250 Volts
  • Current Rating: 4 Amps

Mechanical

  • Life Cycle: 5000 Cycles
  • Operating Force: 2.5 lbs
  • Coupling Locking Style: Threaded

Environmental

  • Temperature Range: 0C to +66C
  • Shielding: Shielded
  • Mechanical Shock: MIL-STD-202F Method 107G
  • Vibration: MIL-STD-202 Method 201
  • Maxiumum Temperature: 66 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Dimensional

  • Cable Opening: 0.29 in

Material

  • Contact Plating Type: Gold
  • Terminal Material: Copper Alloy Tin-Plated
  • Sleeve Material: Copper Alloy
