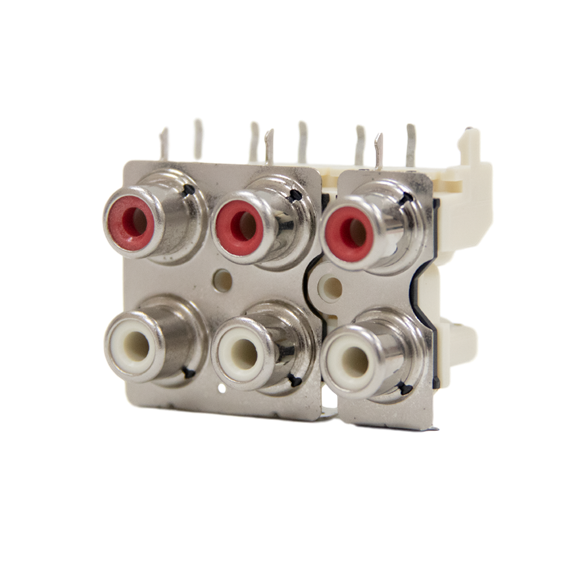

PJRAS3X2S01X

Configuration

• Number of Conductors: 2
• Mounting Type: Panel
• Mounting Feature: Screw Mounting Hole
• Termination Style: Right Angle PC Mount
• Contact Plating: Nickel
• Color: White/Red
• Sealed: Not Sealed
• Insert Material: ABS
• Packaging Type: Bulk
• Number of Stations: 6
• Standard Connector Type: RCA
• Jack-Plug Type: Jack
• PC Mount Style: Thru-Hole

Electrical

• Contact Resistance: 0.03 Ohms
• Dielectric Withstanding Voltage: 500 Volts
• Voltage Rating: 34 Volts
• Current Rating: 24 Amps

Mechanical

• Operating Force: 0.23 lbs

Environmental

• Temperature Range: -25C to +80C
• Flame Rating: UL 94V-HB
• Minimum Temperature: -25 C
• Maxiumum Temperature: 80 C

Compliance

• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: Switchcraft

Material

• Body Material: Copper Alloy
• Body Plating: Nickel
• Contact Material: Copper Alloy
• Contact Plating Type: Nickel
• Terminal Material: Copper Alloy Tin-Plated
