Switchcraft

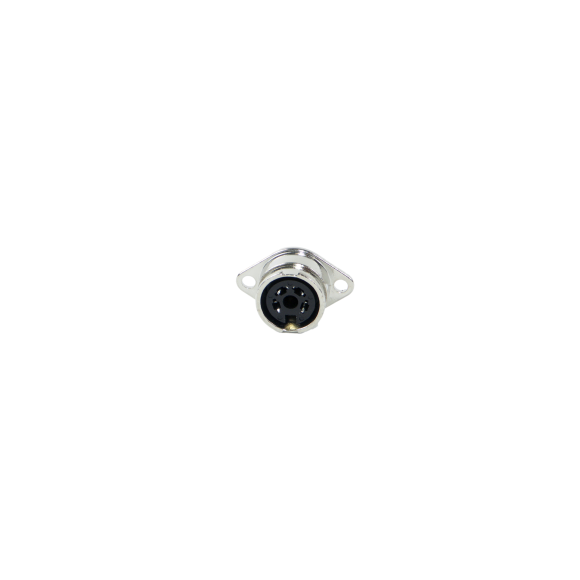

60HA4FX

DIN Panel Mount Connector, Female receptacle with ground contact, 4 contacts at 210

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 4
  • Mounting Type: Panel
  • Gender: Female
  • Contact Size: 22 AWG
  • Termination Style: Solder Cup
  • Contact Plating: Tin
  • Color: Nickel
  • Locking: Locking
  • Packaging Type: Bulk
  • Standard Connector Type: DIN

Electrical

  • Contact Resistance: 0.01 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Current Rating: 3 Amps

Mechanical

  • Operating Force: 7.2 lbs
  • Coupling Locking Style: Bayonet

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Tin Plated
  • Insert Material Type: Thermoplastic
