Switchcraft

DMD5FRA111

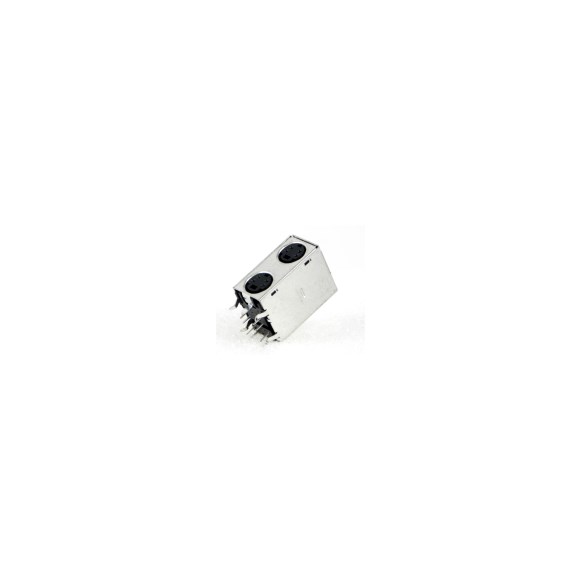

Dual 4 Conctact Mini-Din Connector, insert #5, shielded, no snap-in ground

Out of stock
This item is special order
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 4
  • Mounting Type: Panel
  • Gender: Female
  • Contact Size: 22 AWG
  • Termination Style: Right Angle PC Mount
  • Contact Plating: Tin
  • Color: Nickel
  • Packaging Type: Bulk
  • Standard Connector Type: DIN
  • PC Mount Style: Thru-Hole

Electrical

  • Contact Resistance: 0.03 Ohms
  • Dielectric Withstanding Voltage: 250 Volts
  • Insulation Resistance: 50 MOhms
  • Current Rating: 3 Amps

Mechanical

  • Operating Force: 10 lbs

Environmental

  • Shielding: Shielded
  • Flame Rating: UL 94V-0

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Thermoplastic
  • Contact Material: Tin Plated
