CUSTOM DURA-TWIST CABLES

Dura-Twist Series Custom Factory Molded Cable Assemblies

Compact, metal Dura-Twist connectors, straight or right angle, factory molded with flex relief on any custom cable.



Request a Quote

Dura-Twist Series connectors are trusted by customers all over the world. Factory molded cable assemblies are made in the same Switchcraft factory in Chicago and are a great way to maximize the performance and durability of your cables. Extremely durable, sealed threaded connectors, made by Switchcraft in the USA. TS Series Dura-Twist Connectors are made from nickel plated brass with a medical technology grade plastic insulator and gold plated contacts. They are sealed to IP68 and IP69K, autoclaveable, and rated for at least 5,000 insertion/ withdrawal cycles. Althought they are less than 1/2" in diameter, they can be ordered with up to 9 contacts. (2 thru 5 #20 contacts or 6 thru 9 #26 contacts) Their unique contacts can be either soldered or crimped for maximum flexibility and easy installation. Factory overmolded cables are also available. Switchcraft has knowledgeable engineers ready to help you develop a custom cable to meet your requirements.

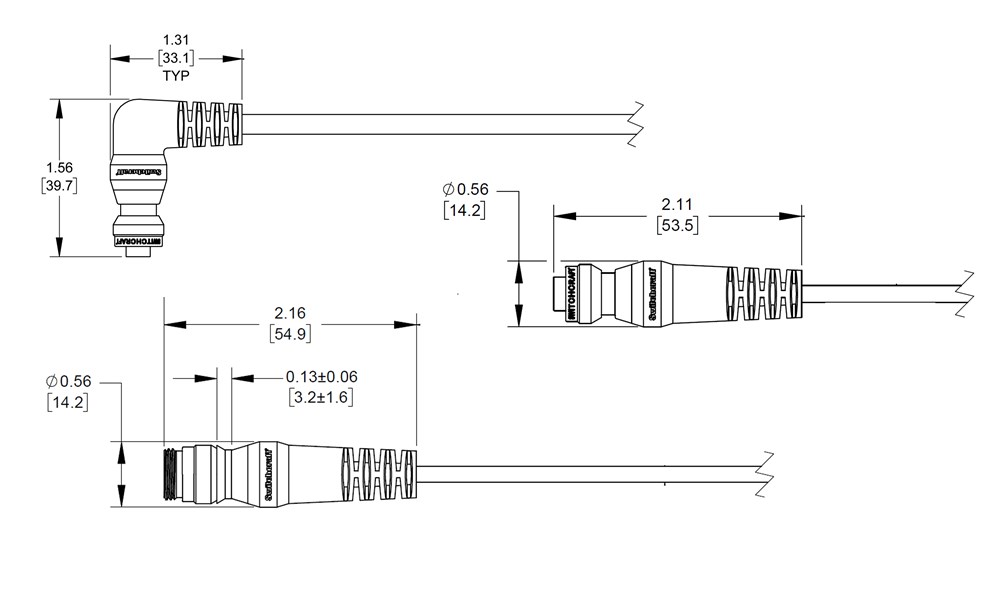

TS2_dims

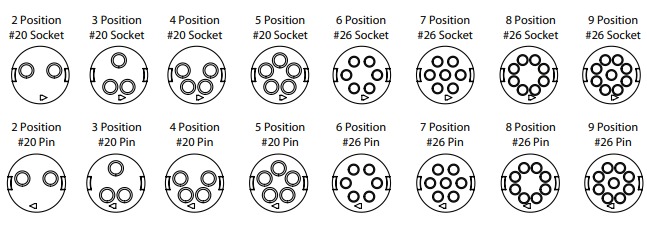

TS2_contacts

Certification

  • Brand: Switchcraft
