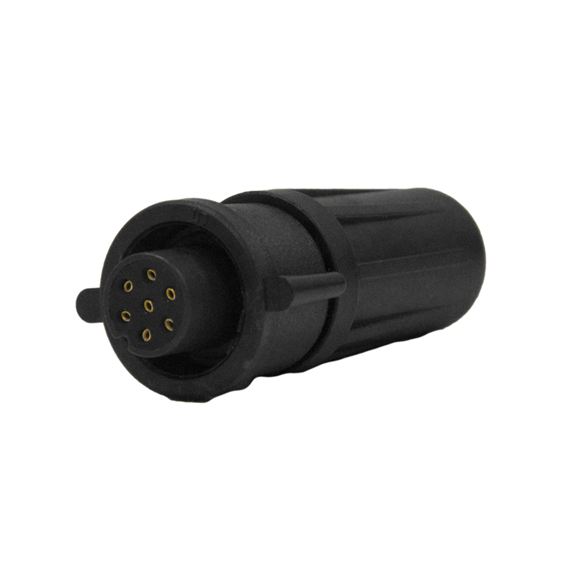

en2c7f26xxw
Enlarge
en2c7f26xxw
  • There are no alternate images available for this product.

  •
Switchcraft

EN2C7F26G2W

EN2 Cord Connector, 7 position #26 female sockets, #26 contact size, 0.140"-0.180"[3.6-4.6mm] grommet, Winged Coupling Ring

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 7
  • Product Line: EN2
  • Mounting Type: Cord
  • Gender: Female
  • Contact Size: 26 AWG
  • Termination Style: Solder/Crimp
  • Contact Plating: Gold
  • Color: Black
  • Locking: Locking
  • Sealed: Sealed
  • Packaging Type: Bulk
  • Winged Coupling Ring: Winged

Electrical

  • Current Rating: 3 Amps

Mechanical

  • Coupling Locking Style: Bayonet

Environmental

  • Shielding: Unshielded

Certification

  • RoHS Compliant: 1
  • REACH Compliant: 1
  • Brand: Switchcraft
  • IP Rating: IP68
  • IP65: 1
  • IP66: 1
  • IP67: 1
  • IP68: 1
  • IP69K: 1

Dimensional

  • Outer Diameter: 0.53 in
  • Cable Opening: 0.18 in
