EN2 Sealed Connectors, 0.530" OD., 2-7 Contacts

EN2 Sealed Connectors, 0.530" OD., 2-7 Contacts

product1

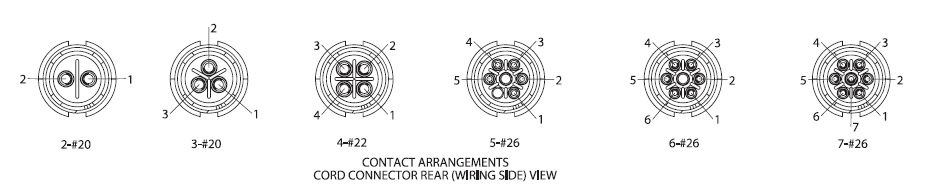

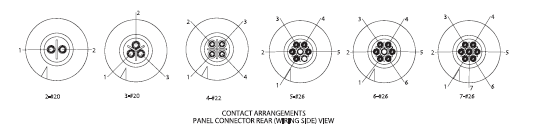

Utilizing an integral O-Ring/gasket, EN2 connectors are available for 2-3 #20 pins/sockets, 4 for #22 pins/sockets and 5-7 for #26 pins/sockets in the same housing size, bayonet locking, cable end and panel mount. Meets enclosure rating IP68, IP69K, and NEMA 250.




Configuration

  • Product Line: EN2
  • Contact Plating: Gold
  • Locking: Locking
  • Insert Material: F1 Rated UV Resistance

Mechanical

  • Coupling Locking Style: Bayonet

Environmental

  • Shielding: Unshielded

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft
  • IP Rating: IP67 IP68 IP69K
  • IP65: 1
  • IP66: 1
  • IP67: 1
  • IP68: 1
  • IP69K: 1

Dimensional

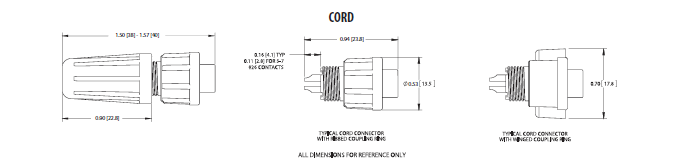

  • Diameter: 0.53 in

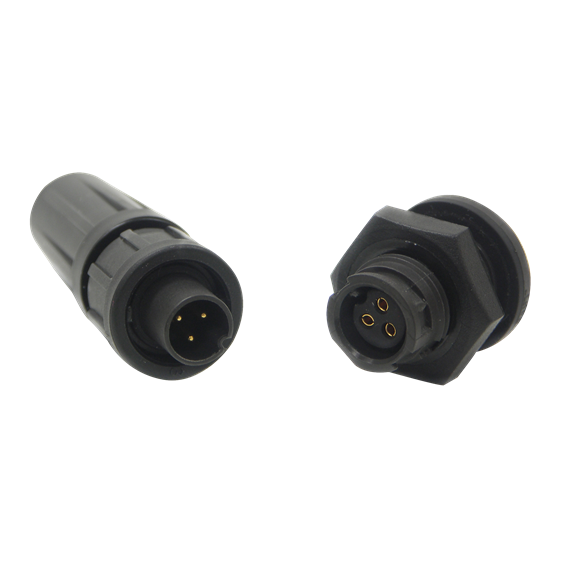

en2_group
Enlarge
en2_group

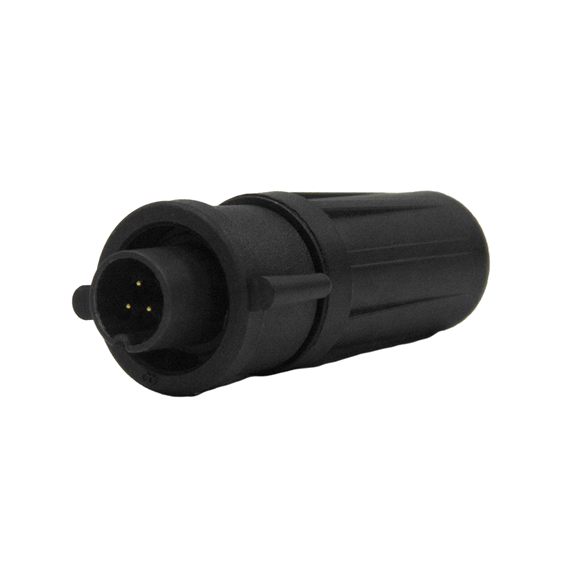

  • en2c3m20xxw

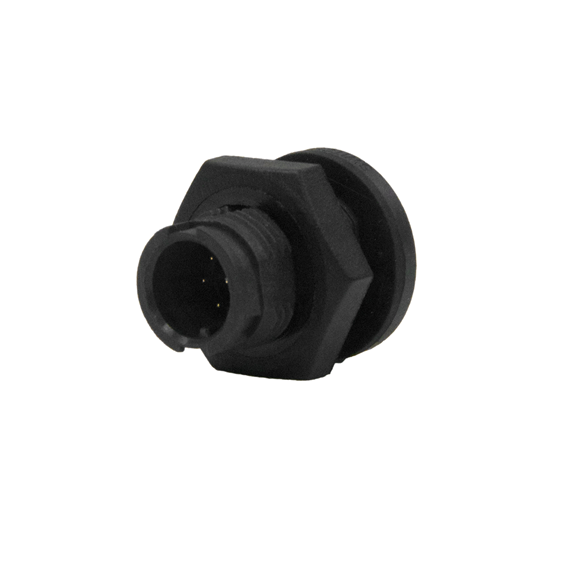

  • en2p7m26

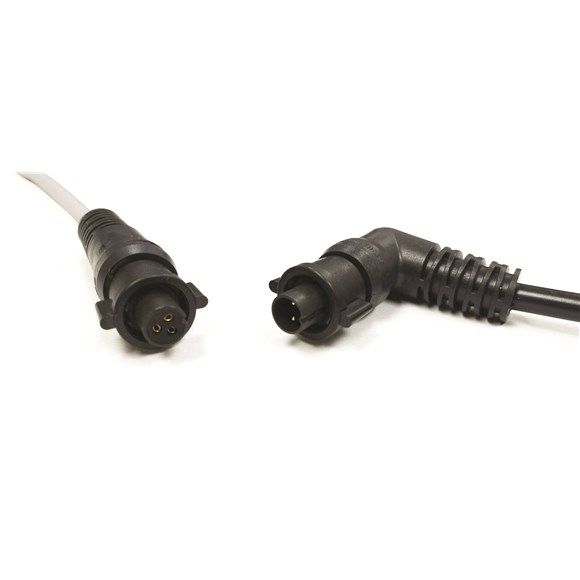

  • EN2_overmold_group
