Micro-Con-X® Connectors 0.530" OD

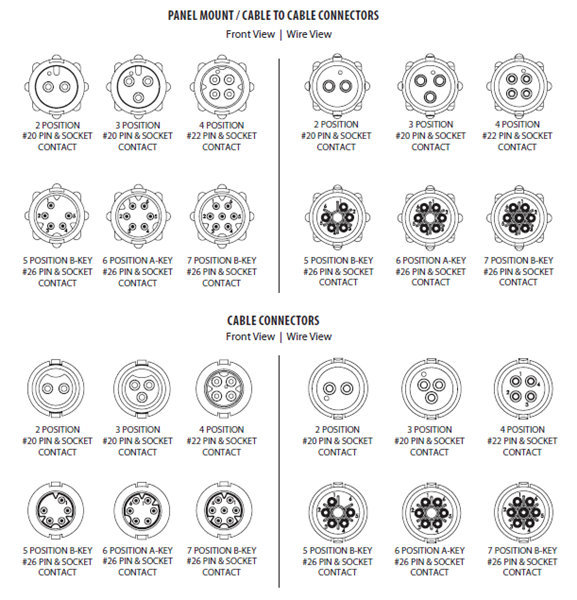

Utilizing a separate o-ring, Micro-Con-X connectors are available up to 3-#20 pins/sockets, 4-#22 pins/sockets, and 7-#26 pins/sockets. Meets IP67, IP69K, and NEMA 6P when mated.




Configuration

  • Product Line: Micro-Con-X
  • Contact Plating: Gold
  • Insert Material: Standard F1 Rated UV Resistance
  • Packaging Type: Bulk

Mechanical

  • Coupling Locking Style: Bayonet Insta-Click Positive Lock

Environmental

  • Shielding: Unshielded

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Conxall
  • IP Rating: IP67 IP68 IP66 IP69K
  • IP65: 1
  • IP66: 1
  • IP67: 1

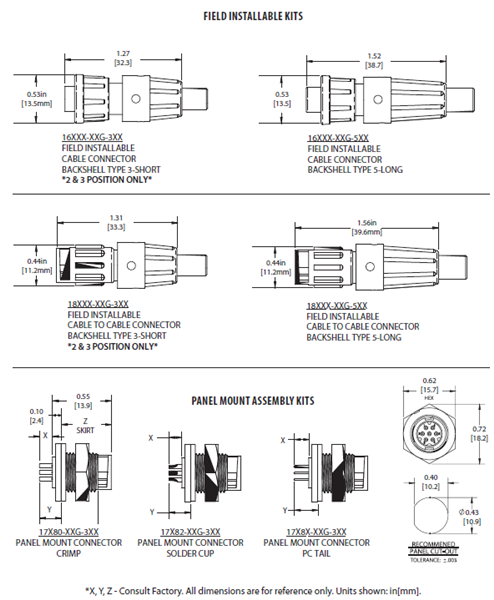

Dimensional

  • Diameter: 0.53 in
  • Outer Diameter: 0.53 in

Material

  • Contact Plating Type: Gold

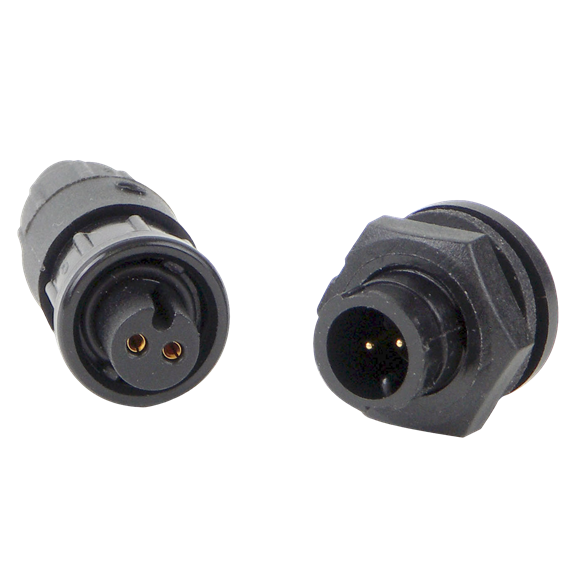

Micro-Con-X_group
Enlarge
Micro-Con-X_group
  • There are no alternate images available for this product.

  •
