Switchcraft

EN2C7M26DCW

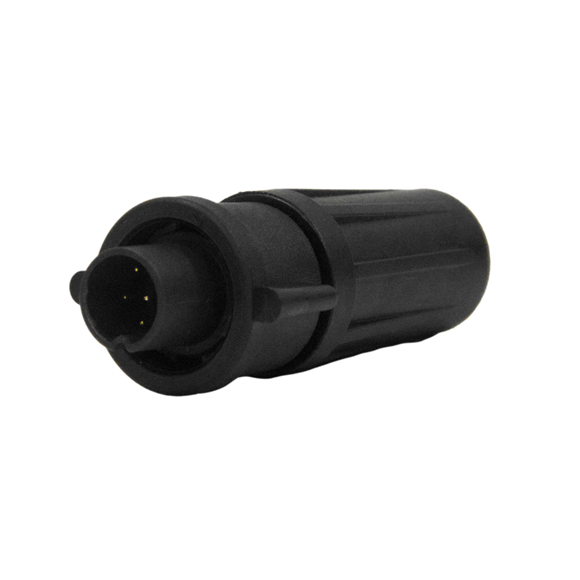

EN2 Cord Connector, 7 position #26 male pins, #26 contact size, Daisy Chain Grommet, Winged Coupling Ring

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 7
  • Product Line: EN2
  • Mounting Type: Cord
  • Gender: Male
  • Contact Size: 26 AWG
  • Termination Style: Solder/Crimp
  • Contact Plating: Gold
  • Color: Black
  • Locking: Locking
  • Sealed: Sealed
  • Packaging Type: Bulk
  • Winged Coupling Ring: Winged

Electrical

  • Current Rating: 3 Amps

Mechanical

  • Coupling Locking Style: Bayonet

Certification

  • RoHS Compliant: 1
  • REACH Compliant: 1
  • Brand: Switchcraft
  • IP Rating: IP68
  • IP65: 1
  • IP66: 1
  • IP67: 1
  • IP68: 1
  • IP69K: 1

Dimensional

  • Outer Diameter: 0.53 in
  • Cable Opening: 0.22 in
