Switchcraft

EN3C13F26CLX

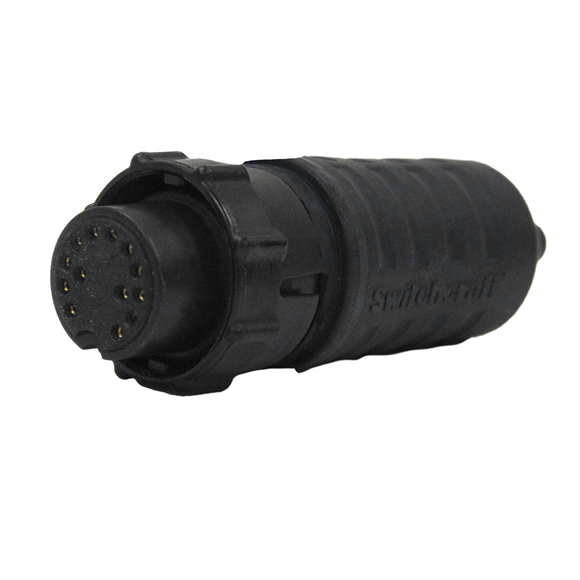

EN3 Harsh Environment Cable End, 13-pin, Female, Crimp, Bulk

Out of stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 13
  • Product Line: EN3
  • Mounting Type: Cord
  • Gender: Female
  • Contact Size: 26 AWG
  • Termination Style: Crimp
  • Contact Plating: Gold
  • Epoxy: Without Epoxy
  • Color: Black
  • Locking: Locking
  • Sealed: Sealed
  • Insert Material: Elastomeric
  • Packaging Type: Bulk
  • Backshell Style: Standard
  • Winged Coupling Ring: Not Winged

Electrical

  • Contact Resistance: 0.02 Ohms
  • Insulation Resistance: Mil-Std 202G method 302 condition B MOhms
  • Voltage Rating: 250 Volts
  • Current Rating: 3 Amps

Mechanical

  • Life Cycle: 600 Cycles
  • Coupling Locking Style: Bayonet

Environmental

  • Temperature Range: -40?C to +85?C
  • Shielding: Unshielded
  • Flame Rating: UL94V-0
  • Moisture Resistance: MIL-STD-202 Method 106F
  • Salt Spray: MIL-STD-202 Method 101D Test Cond B
  • Vibration: MIL-STD-202 Method 201
  • Minimum Temperature: -40 C
  • Maxiumum Temperature: 65 C

Compliance

  • RoHS Compliant: 1
  • CSA: 1
  • UL: 1
  • REACH Compliant: 1
  • Brand: Switchcraft
  • IP Rating: IP68
  • UV Rating: F1
  • Thermal Shock: Mil-Std 202G method 107G
  • IP65: 1
  • IP66: 1
  • IP67: 1
  • IP68: 1
  • IP69K: 1
  • Current Interruption: Not for Current Interruption

Dimensional

  • Outer Diameter: 0.715 in
  • Cable Opening: 0.38 in

Material

  • Body Material: Thermoplastic
  • Contact Material: Copper Alloy
  • Contact Plating Type: Gold
  • Insert Material Type: Elastomeric
