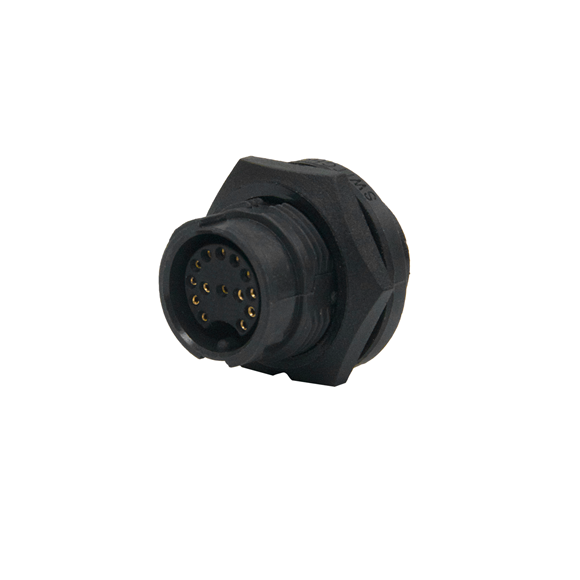

EN3P14F26PX

Configuration

• Number of Conductors: 14
• Product Line: EN3
• Mounting Type: Panel
• Gender: Female
• Contact Size: 26 AWG
• Termination Style: PC Mount
• Contact Plating: Gold
• Color: Black
• Locking: Locking
• Sealed: Sealed
• Insert Material: Elastomeric
• Packaging Type: Bulk
• PC Contact Size: 0.187
• PC Mount Style: Thru-Hole

Electrical

• Contact Resistance: 0.02 Ohms
• Insulation Resistance: Mil-Std 202G method 302 condition B MOhms
• Voltage Rating: 250 Volts
• Current Rating: 3 Amps

Mechanical

• Life Cycle: 600 Cycles
• Coupling Locking Style: Bayonet
• Mounting Torque: 10 in-lbs

Environmental

• Temperature Range: -40?C to +85?C
• Shielding: Unshielded
• Flame Rating: UL94V-0
• Moisture Resistance: MIL-STD-202 Method 106F
• Salt Spray: MIL-STD-202 Method 101D Test Cond B
• Vibration: MIL-STD-202 Method 201
• Minimum Temperature: -40 C
• Maxiumum Temperature: 65 C

Compliance

• RoHS Compliant: 1
• CSA: 1
• UL: 1
• REACH Compliant: 1
• Brand: Switchcraft
• IP Rating: IP68
• UV Rating: F1
• Thermal Shock: Mil-Std 202G method 107G
• IP65: 1
• IP66: 1
• IP67: 1
• IP68: 1
• IP69K: 1
• Current Interruption: Not for Current Interruption

Dimensional

• Outer Diameter: 0.715 in

Material

• Body Material: Thermoplastic
• Contact Material: Copper Alloy
• Contact Plating Type: Gold
• Insert Material Type: Elastomeric
