57PC5F
Enlarge
57PC5F
  • There are no alternate images available for this product.

  •
Switchcraft

57PC5F

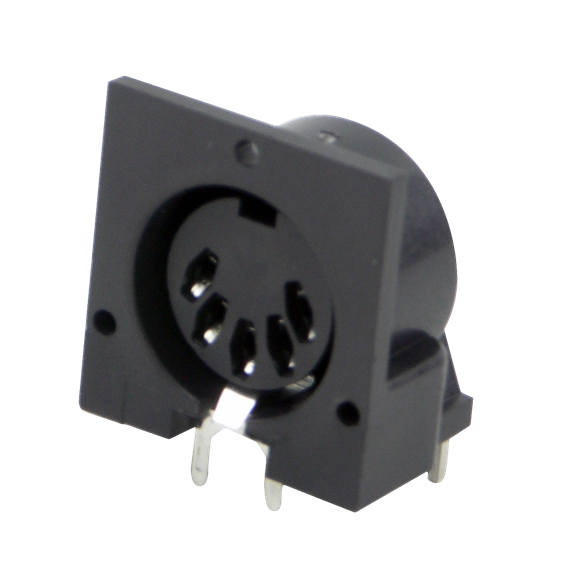

Female DIN Right Angle PC Mount, 5 contacts at 180, Contact Arrangement F

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 5
  • Mounting Type: Panel
  • Gender: Female
  • Contact Size: 22 AWG
  • Termination Style: Right Angle PC Mount
  • Contact Plating: Tin
  • Color: Nickel
  • Packaging Type: Bulk
  • Standard Connector Type: DIN
  • PC Mount Style: Thru-Hole
  • Special Feature: Arrangement F

Electrical

  • Contact Resistance: 0.01 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Current Rating: 3 Amps

Mechanical

  • Operating Force: 9 lbs

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Tin Plated
  • Insert Material Type: Thermoplastic
