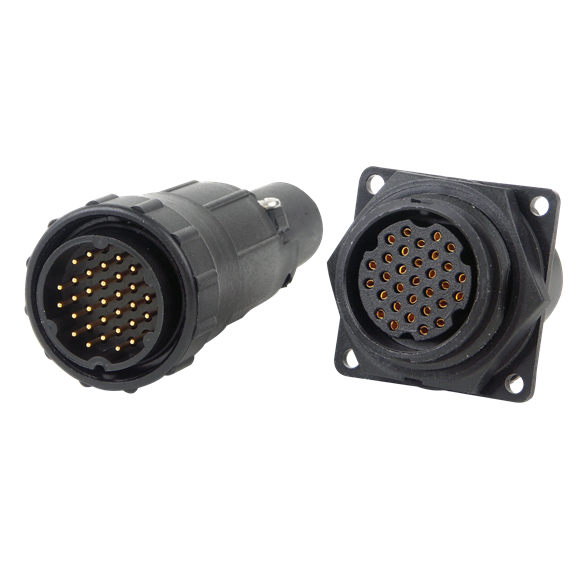

Mega-Con-X Connectors 1.27" OD
Utilizing a separate o-ring,Mega Con X connectors are available up to 31-#20 pins/sockets. Can be ordered with quick connect type or threaded type coupling. Meets NEMA 6P when mated.
Configuration
-
Number of Conductors:
31
-
Product Line:
Mega-Con-X
-
Contact Size:
20 AWG
-
Contact Plating:
Gold
-
Locking:
Locking
-
Sealed:
Sealed
-
Insert Material:
Standard
-
Packaging Type:
Bulk
Electrical
Mechanical
-
Coupling Locking Style:
Bayonet
Threaded
Environmental
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Conxall
-
IP Rating:
IP67
-
IP65:
1
-
IP66:
1
-
IP67:
1

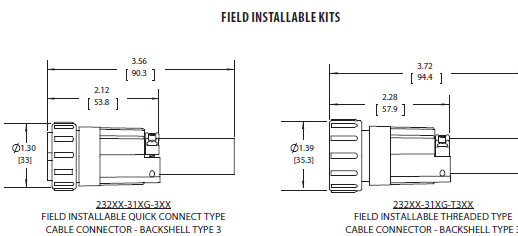

Dimensional
Enlarge
- There are no alternate images available for this product.
