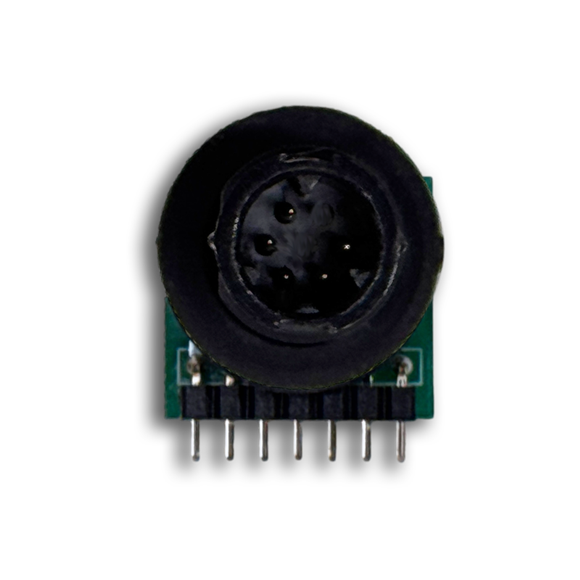

W17961-5PG-3ES

Configuration

• Number of Conductors: 5
• Product Line: Micro-Con-X
• Mounting Type: Panel
• Gender: Male
• Contact Size: 26 AWG
• Termination Style: Right Angle PC Mount
• Contact Plating: Gold
• Epoxy: With Epoxy
• Color: Black
• Locking: Locking
• Sealed: Sealed
• Insert Material: Thermoplastic
• Packaging Type: Box
• PC Mount Style: Thru-Hole

Electrical

• Voltage Rating: 600 Volts
• Current Rating: 2.5 Amps

Mechanical

• Life Cycle: 300 Cycles
• Coupling Locking Style: Bayonet

Environmental

• Temperature Range: -40?C to +85?C
• Shielding: Unshielded
• Flame Rating: UL 94-HB
• Moisture Resistance: MIL-STD-202G Method 106G
• Salt Spray: 300 Hr salt spray when mated
• Minimum Temperature: -40 C
• Maxiumum Temperature: 85 C

Compliance

• RoHS Compliant: 1
• REACH Compliant: 1
• Brand: Conxall
• IP Rating: IP67
• UV Rating: F1
• IP65: 1
• IP66: 1
• IP67: 1

Dimensional

• Outer Diameter: 0.53 in

Material

• Body Material: Thermoplastic
• Contact Material: Copper Alloy
• Contact Plating Type: Gold
• Insert Material Type: UV Resistant
• O-Ring Material: Elastomer
