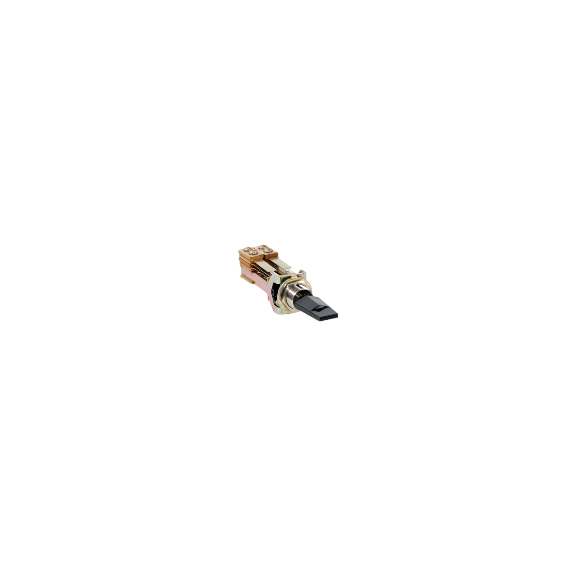

41206lx
Enlarge
41206lx
  • There are no alternate images available for this product.

  •
Switchcraft

41206X

2 position non-locking lever switch, stack height 0.531" (13.49mm)

In stock
This item is special order
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 3
  • Mounting Type: Panel
  • Termination Style: Solder Cup
  • Contact Plating: Tin
  • Packaging Type: Bulk
  • Number of Stations: 2

Electrical

  • Current Rating: 2 Amps
  • Circuit-Schematic: DPDT

Environmental

  • Temperature Range: -30C to +70C
  • Maxiumum Temperature: 70 C

Certification

  • RoHS Compliant: Compliant
  • UL: 1
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Palladium
  • Terminal Material: Solder Lugs Tin-Dipped
  • Frame Material: Steel
